Halbach Arrays: Design, Function, and Benefits
Introduction
Halbach arrays represent a fascinating development in the field of magnetics, enhancing the efficiency and effectiveness of magnetic fields in various applications. This article is going to discuss the design, function, and benefits of Halbach arrays, shedding light on why they are gaining prominence in modern technology.
Design of Halbach Arrays
A Halbach array is a specific arrangement of permanent magnets that results in an asymmetric magnetic field, concentrating the magnetic flux on one side while nearly canceling it on the opposite side. The concept, named after physicist Klaus Halbach, is achieved through a particular orientation of the magnets.
Let’s learn about the basic magnet arrangement first.

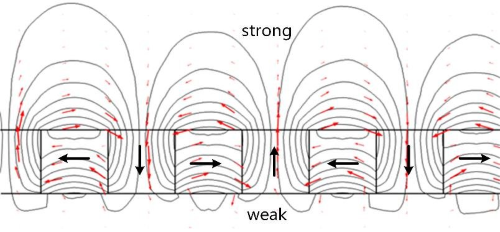

In a typical linear Halbach array, the magnets are aligned in such a way that the direction of their magnetic moments rotates progressively. For instance, in a simple four-magnet array, the first magnet might have its north pole facing up, the second to the side, the third down, and the fourth to the opposite side. This pattern creates a strong magnetic field on one side (the “strong side”) and a weak or nearly zero field on the other side (the “weak side”).
Circular arrangement is also quite common.
When configured into a circular or cylindrical shape, Halbach arrays can create a uniform magnetic field inside the cylinder while canceling the field outside. This is particularly useful in applications like magnetic bearings and motors.
Related reading: Halbach Magnets: History, Types, and Uses
Function of Halbach Arrays
The unique configuration of Halbach arrays leads to several functional advantages:
- Magnetic Field Concentration: By directing the magnetic field to one side, Halbach arrays enhance the magnetic flux density in the desired area, making them highly efficient.
- Field Cancellation: The near-zero field on the opposite side minimizes magnetic interference with surrounding equipment and reduces energy loss.
Therefore, this magnet arrangement finds various applications:
- Magnetic Levitation (Maglev) Systems: Halbach arrays are crucial in maglev trains, where they provide stable and strong magnetic fields for levitation and propulsion.
- Brushless Motors: The arrays are used in high-performance brushless DC motors, where the concentrated magnetic field improves efficiency and torque.
- Medical Imaging Devices: In MRI machines, these arrays help in creating uniform magnetic fields, enhancing imaging quality.
Benefits of Halbach Arrays
The benefits extend beyond their unique magnetic properties, impacting various technological and industrial fields.
- Increased Efficiency:
– Energy Savings: The enhanced magnetic flux on the strong side leads to better energy utilization, reducing power consumption in devices like motors and generators.
– Compact Design: The ability to concentrate the magnetic field allows for smaller and lighter designs, particularly beneficial in portable and space-constrained applications.
- Improved Performance:
– Precision: The uniform and directed magnetic fields result in precise control and improved performance of devices, critical in applications such as aerospace and robotics.
– Noise Reduction: The asymmetric field reduces electromagnetic interference, leading to quieter and more reliable operation of electronic equipment.
- Versatility and Adaptability:
– Custom Configurations: Halbach arrays can be tailored to specific requirements, whether linear or circular, to suit diverse applications ranging from industrial machinery to consumer electronics.
– Scalability: They can be scaled up or down depending on the application, from large-scale transportation systems to small-scale medical devices.
- Cost-Effectiveness:
– Material Efficiency: By optimizing the magnetic field, the magnet arrangement reduces the need for excessive magnetic material, lowering production costs.
– Longevity: The efficient use of magnetic fields contributes to the durability and longevity of the devices they are used in, reducing maintenance and replacement costs.
Conclusion
Halbach arrays can concentrate magnetic fields on one side while nearly canceling them on the other, thus offering unmatched efficiency and performance benefits. From improving the efficiency of maglev trains and brushless motors to enhancing the precision of medical imaging devices, Halbach arrays are revolutionizing how magnetic fields are utilized in various applications.
As technology continues to evolve, its role is likely to expand, driving further innovation and efficiency in numerous fields. For more information, please check Stanford Magnets.
