Interesting Facts about Neodymium Arc Magnets
Neodymium arc magnets, made from a combination of neodymium, iron, and boron (NdFeB), are among the strongest permanent magnets available. Their unique arc shape makes them versatile for a variety of applications, especially in motors and generators.
What Are Arc Magnets?
Arc magnets are curved magnets shaped like a segment of a circle, specifically designed for use in systems requiring radial or circular magnetism. Their unique geometry allows for the efficient alignment of magnetic fields in curved spaces.
Key Characteristics:
– Design: A curved segment designed to fit circular or radial applications.
– Material Options: Commonly made from neodymium for high strength or ferrite for cost-effectiveness.
– Polarization: Magnetization can vary (radial, axial) based on use.
– Durability: Neodymium arc magnets often feature protective coatings like nickel or epoxy to prevent corrosion.
Arc Magnets vs Regular Strong Magnets
The primary differences between arc magnets and regular strong magnets lie in their shape and magnetization patterns. Arc magnets, also known as tile-shaped magnets, are designed with a shape resembling roof tiles. One of their notable characteristics is that their north and south poles always appear on the outer surfaces, regardless of the viewing angle.
For most motor applications, customers require paired magnetization of arc magnets. In this setup:
- One magnet has its N pole on the outer curved surface and S pole on the inner curved surface.
- The other magnet has the opposite: S pole on the outer curved surface and N pole on the inner curved surface.
Additionally, arc magnets can form radial rings, bringing them closer to the stator. This reduces the air gap and increases the magnetic flux between the rotor and stator, enhancing the motor’s efficiency and performance.
Common Uses of Arc Magnets
Arc magnets are critical in applications requiring precise and efficient magnetic fields in curved configurations. Common uses include:
- Electric Motors: Found in DC, AC, and brushless motors to produce rotational movement by interacting with electromagnetic coils.
- Generators: Enhance energy conversion efficiency in generators by maintaining consistent magnetic flux.
- Wind Turbines: Play a role in converting kinetic energy into electrical power.
- Sensors: Used in precision devices like rotary encoders or position sensors.
- Magnetic Couplings: Enable non-contact torque transfer in industrial machinery, reducing wear and noise.
- Appliances: Incorporated into devices like vacuum cleaners and blenders for efficient motor operation.
How to Use Arc Magnets in Brushless Rotors

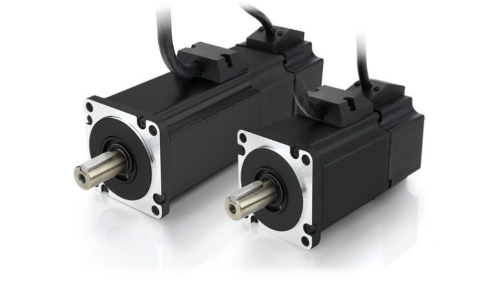

Brushless DC motors rely on arc magnets to create rotational motion by interacting with electromagnetic coils. Here’s a step-by-step guide to using arc magnets in brushless rotors:
- Determine Magnet Placement:
– Arc magnets are positioned along the rotor’s outer edge.
– They should be arranged alternately (north, south) to create a continuous magnetic field.
- Ensure Proper Magnetization:
– Use radially magnetized arc magnets for brushless motors. This setup ensures the magnetic field aligns with the stator’s windings.
- Install the Magnets:
– Securely attach the magnets to the rotor using strong adhesives or mechanical fixtures.
– Make sure the spacing between magnets is uniform to prevent imbalances during rotation.
- Calibrate Pole Alignment:
– Double-check the north and south pole alignment. Proper alternation ensures efficient interaction with the stator.
- Test Rotor Functionality:
– Once installed, test the rotor to confirm smooth and balanced rotation.
– Any irregularities may require adjustments to magnet placement or rebalancing.
- Consider Heat Management:
– If the motor operates at high temperatures, use high-temperature neodymium magnets to avoid performance loss.
By following these steps, arc magnets can be effectively utilized to enhance the performance and efficiency of brushless DC motors.
Conclusion
Arc magnets, particularly neodymium arc magnets, play a crucial role in powering everyday devices and advanced technologies. Their unique curved shape, exceptional strength, and adaptability make them indispensable in applications ranging from electric motors and generators to brushless rotors. As a cornerstone of modern engineering, arc magnets continue to drive efficiency and innovation in countless industries. For more special magnet products, please check Stanford Magnets.
