Magnetic Couplings: Types, Uses, and Advantages
Introduction
Magnetic couplings are non-contact devices used to transmit torque between shafts, providing a seamless transfer of power without a physical connection. They operate using the principles of magnetism, offering unique benefits over traditional mechanical couplings. This article explores the types, uses, and advantages of magnetic couplings, highlighting their significance in various industries.
What Are Magnetic Couplings?

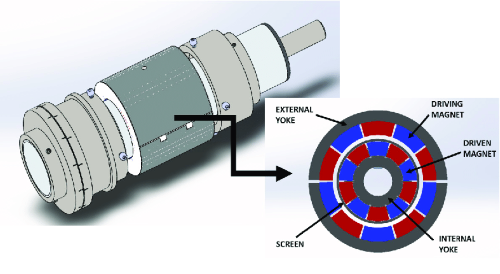

A magnetic coupling employs magnetic forces to transfer rotational motion and torque from one shaft to another. The coupling typically consists of two magnet assemblies:
– A driver magnet attached to the motor shaft.
– A driven magnet attached to the load shaft.
When the driver rotates, the magnetic field generated by the magnets causes the driven magnet to rotate in sync, effectively transmitting torque without any physical contact.
Further reading: Everything You Need to Know About Magnet Assembly
[1]
Types of Magnetic Couplings
1. Synchronous Magnetic Couplings
In synchronous couplings, the driver and driven magnets are aligned, allowing torque to be transmitted directly through magnetic attraction and repulsion. These couplings maintain a fixed speed ratio between the shafts and are ideal for applications where precise torque transfer is required.
2. Eddy Current Magnetic Couplings
Eddy current couplings utilize magnetic fields to induce eddy currents in a conductive material. These currents create opposing magnetic fields, enabling torque transfer with a controlled slip. This type is commonly used in applications requiring speed variation or torque limiting.

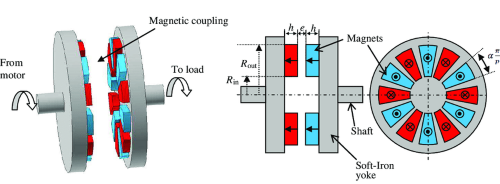

3. Coaxial Magnetic Couplings
Coaxial couplings feature driver and driven magnets positioned concentrically. They are compact and efficient, making them suitable for space-constrained applications such as pumps and mixers.
4. Perpendicular Magnetic Couplings
In these couplings, the driver and driven magnets are arranged at a 90-degree angle. This design is useful for applications requiring torque transfer between shafts with perpendicular orientations.
[2]
Uses of Magnetic Couplings
Such couplings are widely used in industries where non-contact torque transfer, leak prevention, or operational efficiency is essential. Common applications include:
1. Pumps and Mixers
– Chemical and Pharmaceutical Processing: Magnetic couplings in pumps and mixers eliminate the need for seals, preventing leakage and contamination in sensitive environments.
– Food and Beverage Industry: They ensure hygienic operation by providing a sealed barrier between the motor and the process fluid.
2. Renewable Energy
– Wind Turbines: These couplings transfer torque from the rotor to the generator with minimal mechanical wear.
– Hydroelectric Power: Used in underwater turbines to ensure reliable power transfer without mechanical seals.
3. Medical Equipment
– MRI Machines: Magnetic couplings ensure precise torque transfer in environments requiring non-magnetic and sterile components.
– Laboratory Mixers: They provide contamination-free mixing for sensitive biological and chemical samples.
4. Automotive and Aerospace
– Electric Vehicles (EVs): Magnetic couplings improve motor efficiency and reduce wear in electric drivetrain systems.
– Aerospace Applications: They ensure reliable torque transfer in vacuum or low-pressure environments.
5. Industrial Automation
– Material Handling: Magnetic couplings are used in conveyor systems to drive belts without direct mechanical contact.
– Robotics: They enable precise and smooth motion in robotic joints and arms.
[3]
Benefits and Advantages
Magnetic couplings offer numerous advantages that make them superior to traditional mechanical couplings in specific applications:
- No Physical Contact: Magnetic couplings operate without direct mechanical contact, which significantly reduces wear and tear, thereby extending the lifespan of the coupling and the associated equipment. Additionally, they eliminate the need for lubrication, reducing both maintenance requirements and associated costs.
- Leak Prevention: These couplings create a hermetically sealed barrier, effectively preventing leaks in pumps and mixers that handle toxic, corrosive, or sterile fluids. This makes them ideal for applications requiring contamination-free environments.
- Vibration and Misalignment Tolerance: Magnetic couplings are capable of compensating for minor misalignments between shafts, reducing the likelihood of equipment damage. Furthermore, their non-contact design minimizes the transmission of vibrations, leading to quieter and smoother operation.
- Improved Durability: Since such couplings lack physical wear components, they are exceptionally durable and well-suited for use in harsh and demanding environments.
- Energy Efficiency: By eliminating friction associated with mechanical couplings, magnetic couplings significantly reduce energy losses, enhancing the overall efficiency of the system.
- Safety: Magnetic couplings remove the need for direct mechanical connections, thereby reducing the risk of mechanical failure. This ensures safer operation, particularly in critical applications.
Limitations of Magnetic Couplings
While magnetic couplings have numerous advantages, they also have certain limitations:
– Torque Limitations: The amount of torque a magnetic coupling can transfer is limited by the strength of the magnets.
– Cost: High-quality magnetic couplings can be more expensive than traditional couplings.
– Demagnetization: Exposure to high temperatures or strong external magnetic fields can weaken the magnets.
Conclusion
Magnetic couplings are a versatile solution for torque transfer in industries demanding efficiency, safety, and contamination-free operation. Their ability to eliminate physical contact and prevent leakage makes them indispensable in applications such as chemical processing, renewable energy, and medical equipment. As technology advances, magnetic couplings are expected to play an even larger role in modern engineering solutions. For more advanced magnet materials, please check Stanford Magnets.
